Ultra-Lightweight Aerial Cable
Product Description➜

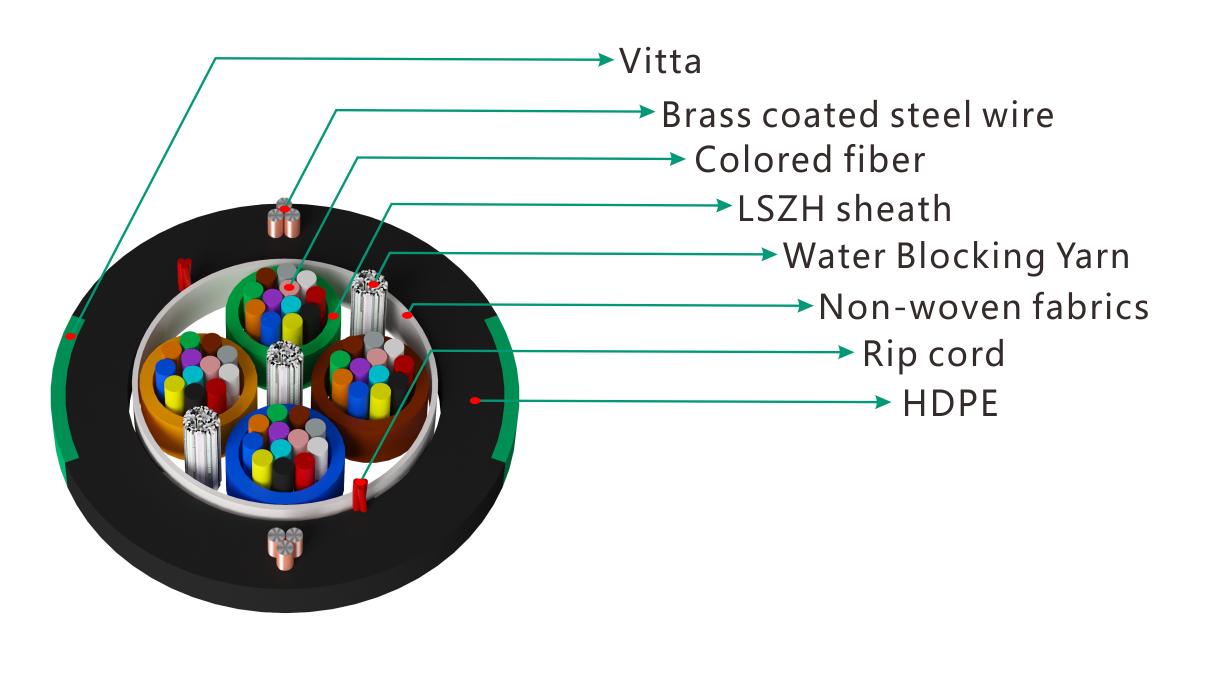

he Ultra-Lightweight Aerial Cable is of a LSZH micro tube design with colored optical fibers organized in fiber miniature loose tubes depending on cable fibre count. This design gives an excellent bend performance and an extremely wide operational temperature range. The unique miniature LSZH micro tubes also provide superior cable preparation and handling properties both for termination and mid-span access scenarios. The tube is wrapped with a layer of non-woven fabrics, in order to be heat insulation and anti-adhesive.Water swell-able elements are used to make the cable design longitudinally watertight. Two 3x0.32 mm brass coated steel wires are used as strength members.The design makes it possible to control the breaking force of the cable so that the cable will break only when a certain load is reached. Two ripcords for easy peeling effect.The cable is completed with a polyethylene ( HDPE ) sheath.

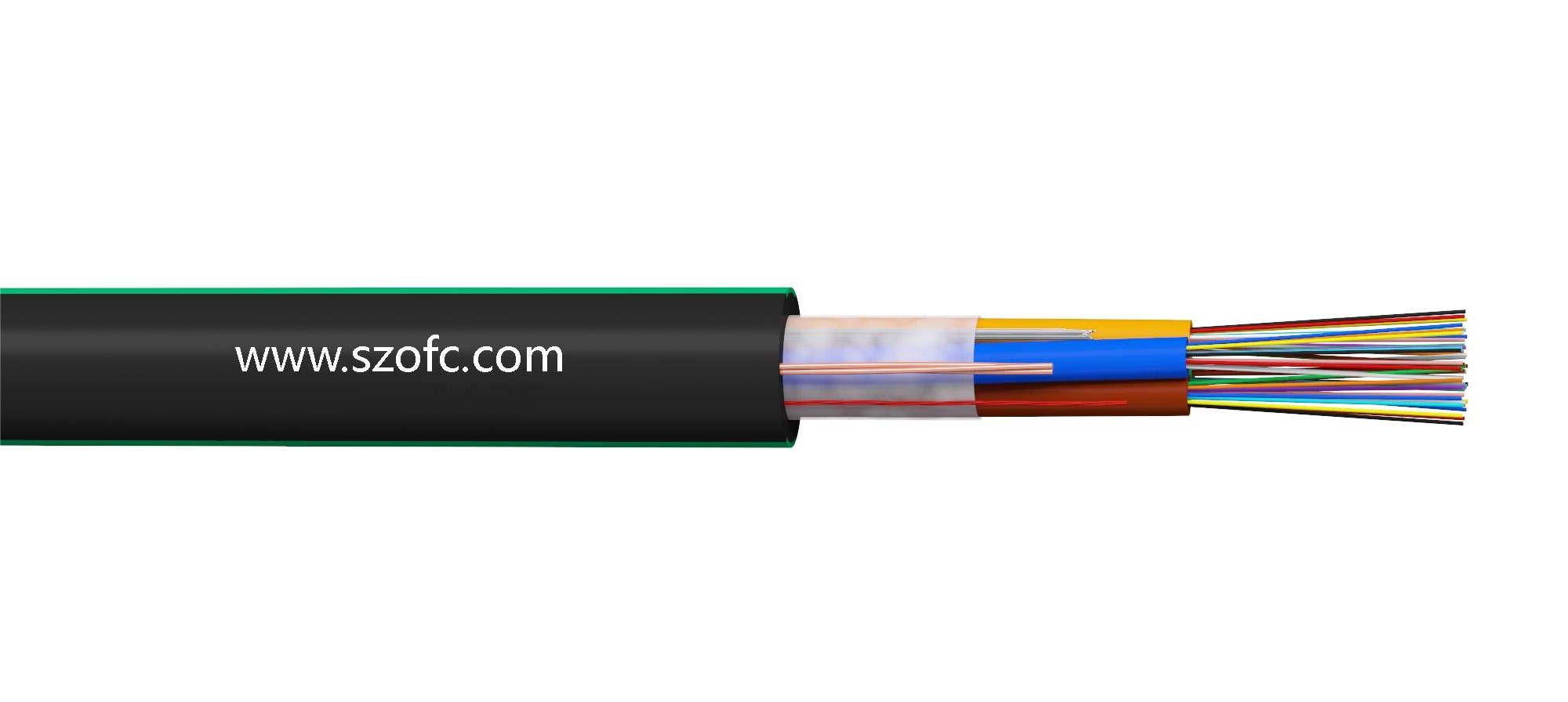

Product Show➜
Product Features➜
·Small outer sheath diameter, super lightweight and durable design based on unique miniature LSZH micro tubes and easy to peel
·Good adhesion between Brass coated steel wire and outer sheath;
·Excellent bend performance and an extremely wide operational temperature range;
·Half-Dry design with longitudinal water tightness;
·Provide superior cable preparation and handling properties both for termination and mid-span access scenarios;
·For aerial or duct installations.
Product Standard➜
Comply with YD/T769-2018、ITU-T G.657 、IEC60794 standards.
Optical Characteristics➜
G.652 | G.655 | 50/125μm | 62.5/125μm | G.657 | ||
Attenuation (+20℃) | @850nm | - | - | ≤3.5dB/km | ≤3.5dB/km | - |
@1300nm | - | - | ≤1.5dB/km | ≤1.5dB/km | - | |
@1310nm | ≤0.35dB/km | - | - | - | ≤0.35dB/km | |
@1550nm | ≤0.25dB/km | ≤0.25dB/km | - | - | ≤0.25dB/km | |
Bandwidth （Class A） | @850 | - | - | ≥500MHZ·km | ≥200MHZ·km | - |
@1300 | - | - | ≥500MHZ·km | ≥500MHZ·km | - | |
Numerical Aperture | - | - | - | 0.200±0.015NA | 0.275±0.015NA | - |
Wavelength | - | ≤1260nm | ≤1480nm | - | - | ≤1260nm |
Structure Parameter ➜
Fiber count | Tube count | Optical cable size (mm) | Reference weight | Tension | Crush Resistance | Bending radius |
2-12 | 1 | 7.0 | 35 | 150/500 | 300/1000 | 20D/10D |
24 | 2 | 7.0 | 35 | 150/500 | 300/1000 | 20D/10D |
36 | 3 | 7.0 | 36 | 150/500 | 300/1000 | 20D/10D |
48 | 4 | 7.0 | 38 | 150/500 | 300/1000 | 20D/10D |
96 | 4 | 7.1 | 44 | 150/500 | 300/1000 | 20D/10D |
Environment Performance ➜
Transportation temperature | －20℃～＋60℃ |
Storage temperature | －20℃～＋60℃ |
Delivery length ➜
Recommended length: 2000m; other lengths can be provided as customer request.
