Unitube Micro Air-blown Optic Fiber Cable
Unitube Micro Air-blown Optic Fiber Cable -（GCYFXTY）
Product Description➜

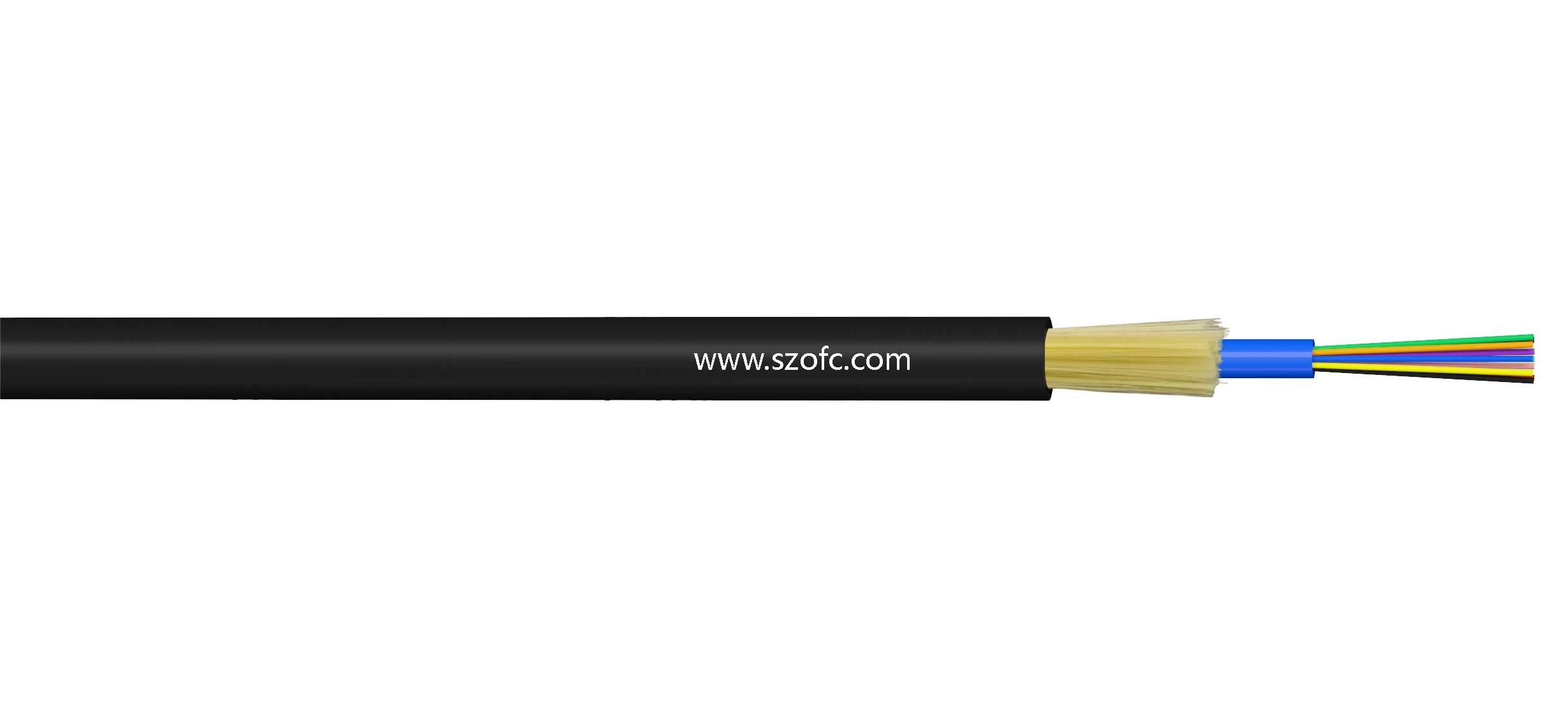

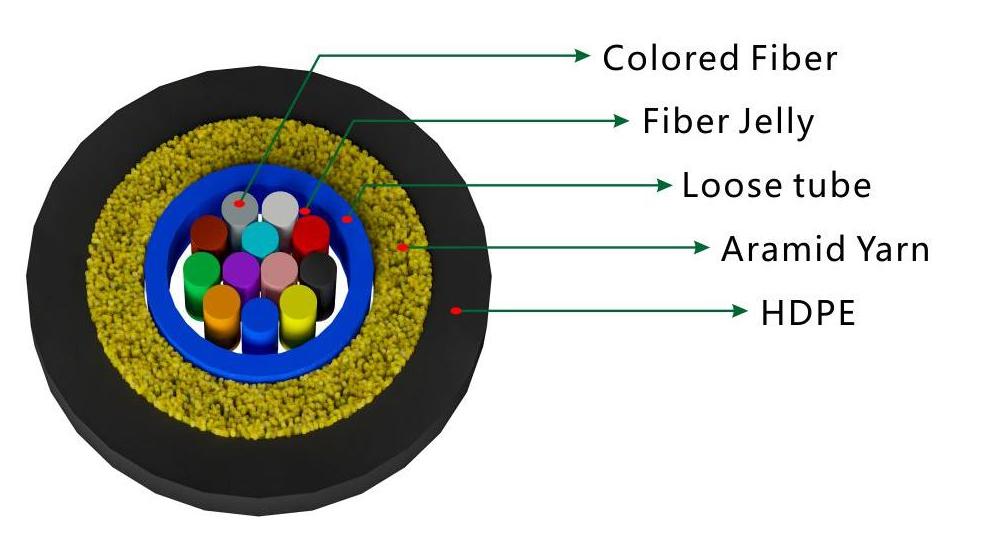

The structure of Unitube Micro Air-blown fiber optic cable(GCYFXTY) is to place multiple colored fibers and gel filling compound in a loose tube of high modulus material. Aramid yarns are placed outside the loose tube as the non-metallic strength member, then a low friction sheath with grooves is extruded.
Product Show➜
Product Features➜
· Reduce fiber placement density, improve the utilization rate of the pipeline, narrow bend space can be laid freely;
· All non-metallic structure, small size and light weight, no need for grounding, avoid complex operations such as installation of insulation section lightning protection;
· Suitable for air blowing in the crowded gap of the metropolitan area network, surrounded by hard material plastic pipe protection, to avoid the possibility of destructive cutting;
· Abandon the splice closure and fixed node budget of traditional access network, realize the cutting of micro duct anytime and anywhere, and carry out branch connection;
·Reduce node fusion, fiber splice closure deployment and other labor and material comprehensive costs;
· The unique special shape greatly increases the peristaltic length of the cable in the tube, providing the possibility for long-distance air blowing.
Product Standard➜
Comply with standard IEC 60794-5、GB/T7424.5、 YD/T 1460.4;
Optical Characteristics➜
Title | Wave band | G.652B/D | G.657 Series |
attenuation | @1310nm | ≤0.35dB/km | ≤0.35dB/km |
@1550nm | ≤0.22dB/km | ≤0.22dB/km |
Structure Parameter ➜
Optic Fiber Cable Model | GCYFXY | GCYFXY | GCYFXY | GCYFXY | GCYFXY | |||||
Fiber Count | 2-4 | 2-4 | 2-12 | 2-12 | 14-24 | |||||
Cable Out Diameter （mm）
| 1.8 | 2.0 | 2.3 | 2.5 | 2.8 | |||||
Reference Weight (Kg/km) | 2.5 | 4.0 | 5.0 | 6.0 | 7.0 | |||||
Tensile strength long term /Short term (G) | 0.15G/0.5G | 0.15G/0.5G | 0.15G/0.5G | 0.15G/0.5G | 0.15G/0.5G | |||||
Crush long term /short term ( N/100mm) | 150/450 | 150/450 | 150/450 | 150/450 | 150/450 | |||||
Bending radius static /dynamic （mm） | 10D/20D | 10D/20D | 10D/20D | 10D/20D | 10D/20D | |||||
Micro duct （mm） | 3.5/5.0 | 5.5/7.0 | 3.5/5.0 | 5.5/7.0 | 3.5/5.0 | 5.5/7.0 | 3.5/5.0 | 5.5/7.0 | 3.5/5.0 | 5.5/7.0 |
Distance of air-blown (m) | ≥1200 | ≥1800 | ≥1100 | ≥1600 | ≥1000 | ≥1500 | ≥800 | ≥1200 | ≥500 | ≥1000 |
Note | “G”is the weight of optic fiber cable per 1KM. | |||||||||
Environment Performance➜
| Transportation temperature | －20℃～＋70℃ |
| Storage temperature | －20℃～＋70℃ |
Delivery length➜
Recommended length: 2000m; other lengths can be provided as customer request.
Packing Introduction➜
The fiber optic cables exported by OFC which packaging using high-temperature and high-pressure sterilized molded plywood. The plywood drum will not contain insects and insect eggs, which will not cause harm to the agricultural and forest resources of the destination countries. Therefore, when this kind of plywood drum is used as packing, the customs department does not require fumigation treatment.
