Stranded Nylon Sheath Micro Air Blown Cable
Stranded Nylon Sheath Micro Air Blown Cable -GCYFY04 Optical Cable
Product Description➜

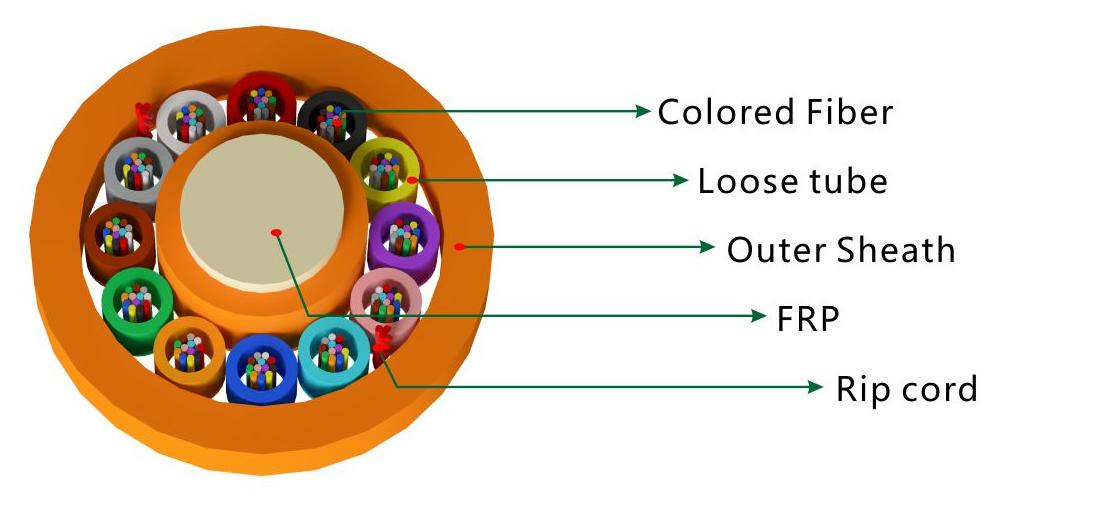

Loose tube stranded micro air-blown cable with Nylon sheath (GCYFY04) whose structure is a central non-metallic strength member wrapped with high-modulus micro-loose tube (built-in with multiple colored optical fibers and filled with gel water-blocking compounds) to form an unarmored cable core , a rip cord is placed on the outer layer , then a low friction nylon outer sheath is extruded.

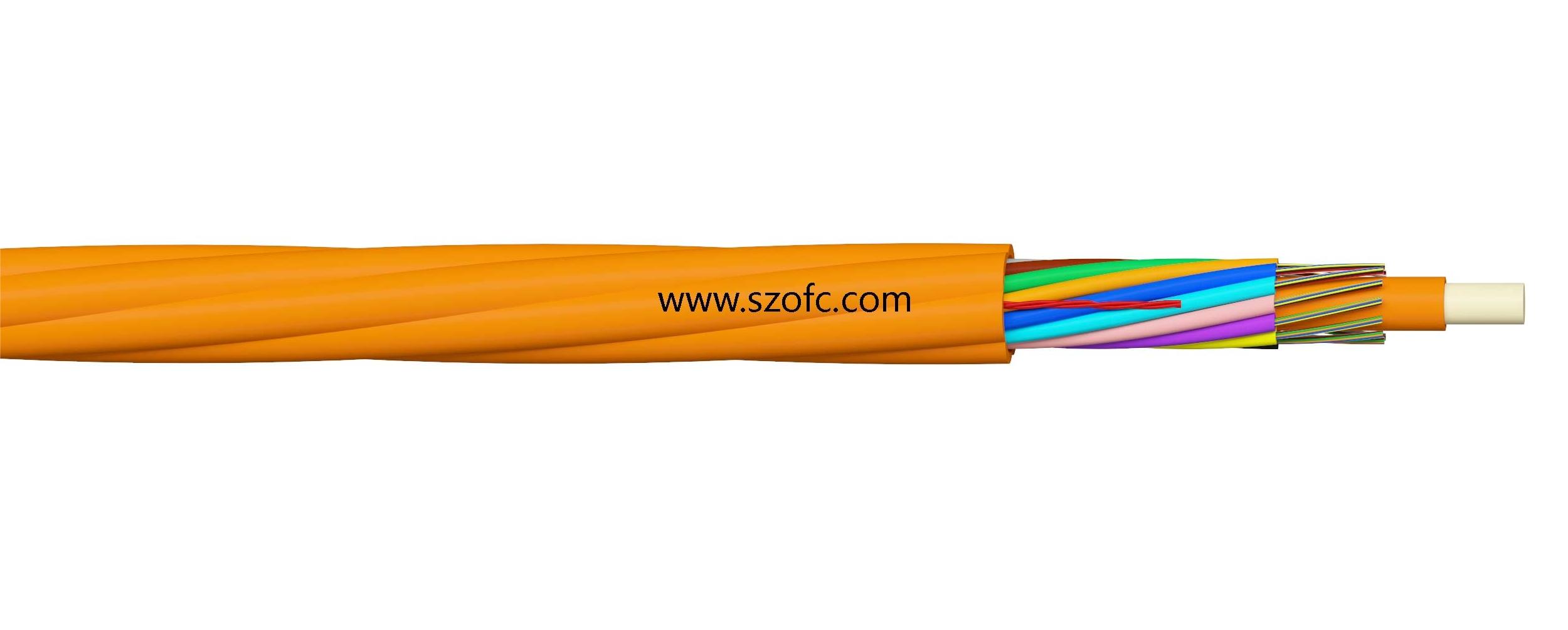

Product Show➜
Product Features➜
· High density, light weight, longer air blowing distance;
·Dry-type cable core resists water, and is covered with low-friction materials, making construction more efficient;
· Effectively utilize the remaining resources of the existing pipe network and reduce the cost of construction and laying of the pipe network;
· Suitable for backbone network, metropolitan area network and access network;
· The surface of the sheath is very smooth, which enhances the air blowing performance.
Product Standard➜
Comply with standard IEC 60794-5、IEC 60794-1-2 YD/T 1460-2006.
Optical Characteristics➜
Title | Wave band | G.652B/D | G.657 Series |
attenuation | @1310nm | ≤0.35dB/km | ≤0.35dB/km |
@1550nm | ≤0.22dB/km | ≤0.22dB/km |
Structure Parameter ➜
Optic Fiber Cable Type | GCYF04 | |||||||||||||||
24 | 36 | 48 | 60 | 72 | 96 | 144 | 216 | 288 | ||||||||
Qty Per Tube | 12 | |||||||||||||||
Tuber QTY | 2 | 3 | 4 | 5 | 6 | 8 | 12 | 18 | 24 | |||||||
O.D(mm) | 5.5 | 6.3 | 7.8 | 7.8 | 9.3 | |||||||||||
Cable Weight (Kg/km) | 27 | 40 | 55 | 55 | 78 | |||||||||||
Max. Tensile Strength （N） | 500 | 1000 | 1000 | 500 | 1000 | |||||||||||
Max.Crush Resistance(N/100mm) | 800 | |||||||||||||||
Bending Radius Static/Dynamic | 15D/20D | |||||||||||||||
Micro Duct (mm) | 8.0/12.0 | 8.0/12.0 | 10.0/14.0 | 10.0/14.0 | 12.0/14.0 | |||||||||||
Air-blown Distance(m) | ≥1500 | |||||||||||||||
Environment Performance➜
Transportation /Storage/Use temperature | －40℃～＋70℃ |
Installation temperature | －5℃～＋50℃ |
Delivery length➜
Recommended length: 2000m; other lengths can be provided as customer request.
Packing Introduction➜
The fiber optic cables exported by OFC are packed with wood imported from Canada, which are fumigated for 24 hours at high temperature to effectively prevent the damage of diseases, pests, viruses and other ecological damage to the destination countries. OFC packages are fully meet customs requirements of the United States, Canada, European Union, Japan and Australia, and the official fumigation certificate shall be issued with the goods.
