Stranded Air Blown Micro Fiber Optic Cable
Stranded Air Blown Micro Fiber Optic Cable -GCYFY
Product Description➜

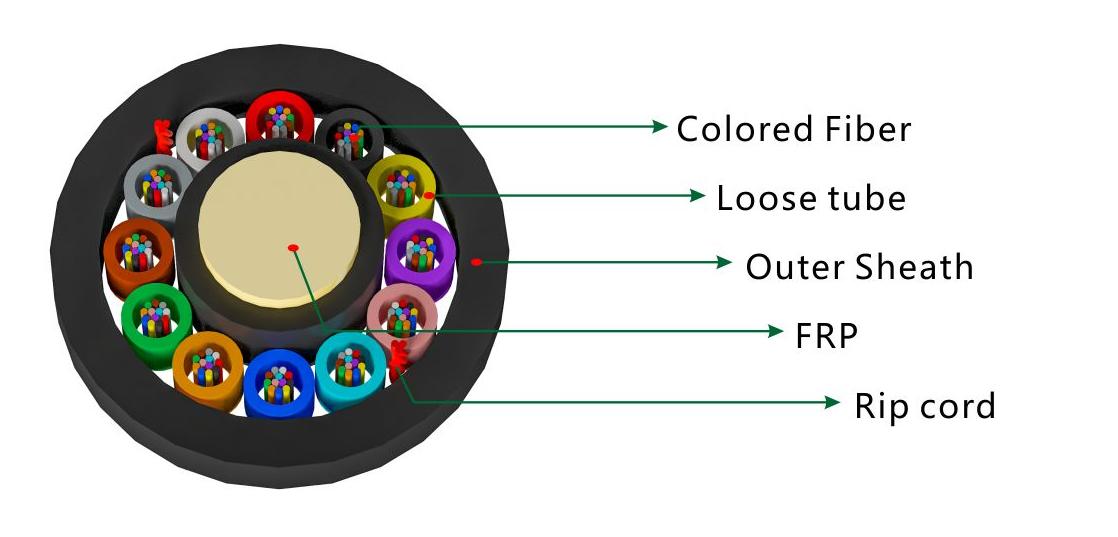

Loose tube stranded air-blown micro-cable (GCYFY) its structure is a central non-metallic strength member surrounded by high-modulus micro-loose tube (built-in with multiple colored optical fibers and filled with gel water-blocking compound) to form an unarmored cable core , the outer layer is then extruded bright polyethylene sheath.

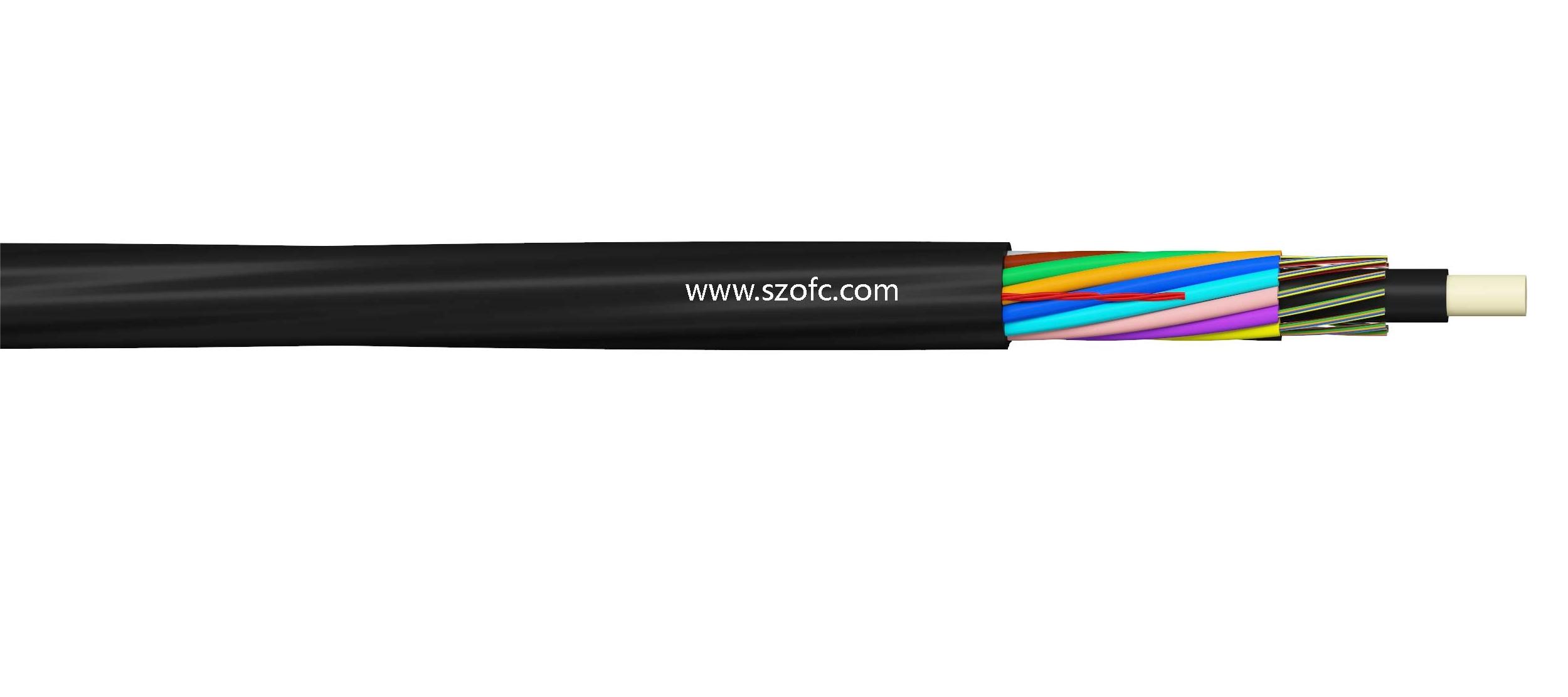

Product Show➜
Product Features➜
·Small diameter, light weight, moderate softness and hardness, easy to bend when air-blowing, easy to operate;
· All non-metallic structure, no need for grounding, low friction coefficient sheath material and structure, long air-blown distance;
· Allow full use of duct holes resources, fast construction speed by air-blowing, long laying distance at one time;
· Allowing to blow by phases to improve the capacity of pipeline expansion and reduce the initial investment;
· Compared with ordinary access network, pipeline resources are more effectively utilized, reducing the frequency of connections, Fiber Splice Closures and other cost inputs;
· Suitable for backbone networks, metropolitan area networks and access networks.
Product Standard➜
Comply with standard IEC 60794-5、GB/T7424.5、 YD/T 1460.4.
Optical Characteristics➜
Title | Wave band | G.652B/D | G.657 Series |
attenuation | @1310nm | ≤0.35dB/km | ≤0.35dB/km |
@1550nm | ≤0.22dB/km | ≤0.22dB/km |
Structure Parameter ➜
Optic Fiber Cable Type | 12/24/36 | 24/48/72 | 96 | 144 | 192 | 216 | 288 | 144 | 192 | 288 | 432 | 576 |
Qty Per Tube | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 24 | 24 | 24 | 24 | 24 |
Tuber QTY | 2/4/6 | 2/4/6 | 8 | 12 | 16 | 18 | 24 | 6 | 8 | 12 | 18 | 24 |
O.D(mm) | 4.5 | 5.4 | 6.1 | 7.9 | 7.9 | 7.9 | 9.3 | 7.3 | 8.8 | 11.4 | 11.4 | 13.4 |
Cable Weight (Kg/km) | 16 | 26 | 36 | 52 | 52 | 52 | 80 | 42 | 76 | 110 | 105 | 140 |
Max. Tensile Strength （N） | 200 | 600 | 800 | 800 | 600 | 600 | 1000 | 800 | 1000 | 1200 | 800 | 1200 |
Allow Tensile Strength Long term/Short term （G） | 0.3G/1.0G | |||||||||||
Allow Crush Long term/Short term（N/100mm） | 150/500 | |||||||||||
Micro Duct (mm) | 6.0/8.0 | 8.0/12.0 | 8.0/12.0 | 10.0/14.0 | 10.0/14.0 | 10.0/14.0 | 12.0/14.0 | 10.0/14.0 | 12.0/16.0 | 14.0/16.0 | 14.0/16.0 | 16.0/20.0 |
Distance of Air-blow（m） | ≥1200 | |||||||||||
Note | “G”is the weight of optic fiber cable per 1KM. | |||||||||||
Environment Performance ➜
Transportation /Storage/Use temperature | －40℃～＋70℃ |
Installation temperature | －5℃～＋50℃ |
Delivery length ➜
Recommended length: 2000m; other lengths can be provided as customer request.
Packing Introduction➜
The fiber optic cables exported by OFC are packed with wood imported from Canada, which are fumigated for 24 hours at high temperature to effectively prevent the damage of diseases, pests, viruses and other ecological damage to the destination countries. OFC packages are fully meet customs requirements of the United States, Canada, European Union, Japan and Australia, and the official fumigation certificate shall be issued with the goods.
