Micro Air-blown Fiber Optic Cable
Micro Air-blown Fiber Optic Cable- GCYXTY
Product Description➜

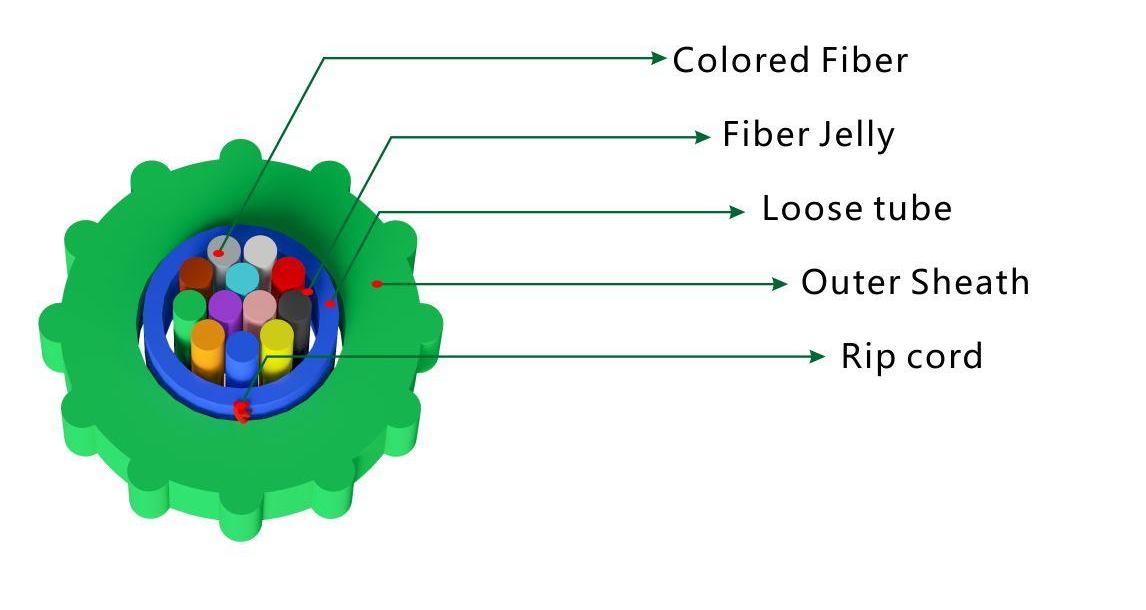

Mini air blown fiber optic cable (GCYXTY) consists of a number of coloured fibers and gel filled compounds placed in a high modulus material sheath with a rip cord, then a low friction outer sheath with grooves is extruded.

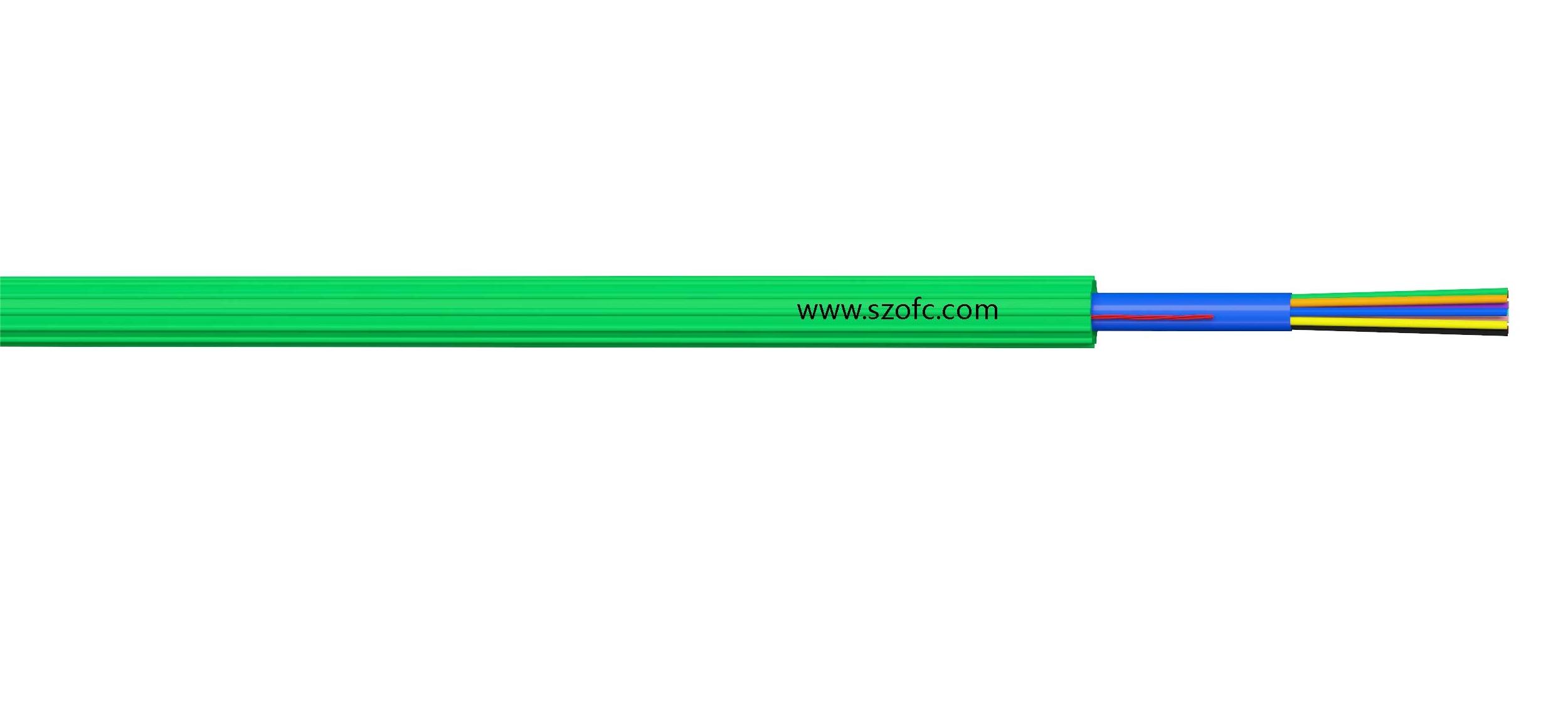

Product Show➜
Product Description➜
Product Features➜
· Small volume, light weight, high fiber density, save duct resources;
· Low friction, high air blowing efficiency;
· Easy strip, easy installation, easy maintenance, easy upgrading;
· Excellent transmission, mechanical and environmental performance;
Product Standard➜
Comply with standard IEC 60794-5、IEC 60794-1-2 YD/T 1460-2006;
Optical Characteristics➜
Title | Wave band | G.652B/D | G.657 Series |
attenuation | @1310nm | ≤0.35dB/km | ≤0.35dB/km |
@1550nm | ≤0.22dB/km | ≤0.22dB/km |
Structure Parameter ➜
Micro Cable Model | GCYFXY- xxF (MTE+O.D） | ||||
MTE1.8 | MTE2.0 | MTE2.3 | MET2.5 | MET2.8 | |
Fiber Count | 2~4 | 2~4 | 6~12 | 2~12 | 14~24 |
Cable O.D（mm） | 1.8 | 2.0 | 2.3 | 2.5 | 2.8 |
Matched Micro Duct（mm）and Distance of Air-blow（m）
| 3.5/5.0, ≥800 | 3.5/5.0, ≥500 | |||
5.5/7.0, ≥1500 | 5.5/7.0, ≥1300 | ||||
Reference Weight（Kg/km） | 2.6 | 4.0 | 5.0 | 6.0 | 7.0 |
Max. Tensile Strength （N） | 40 | 40 | 50 | 60 | 60 |
Max. Cush Resistance（N/100mm） |
600 | ||||
Bending Radius Static/Dynamic | 10D/20D | ||||
Environment Performance ➜
Transportation temperature | －20℃～＋70℃ |
Storage temperature | －20℃～＋70℃ |
Delivery length➜
Recommended length: 2000m; other lengths can be provided as customer request.
Packing Introduction➜
The fiber optic cables exported by OFC which packaging using high-temperature and high-pressure sterilized molded plywood. The plywood drum will not contain insects and insect eggs, which will not cause harm to the agricultural and forest resources of the destination countries. Therefore, when this kind of plywood drum is used as packing, the customs department does not require fumigation treatment.
