Stranded Loose Tube Armored Cable
Outdoor Stranded Loose Tube Armored Optic fiber Cable - GYTS
Product Description➜

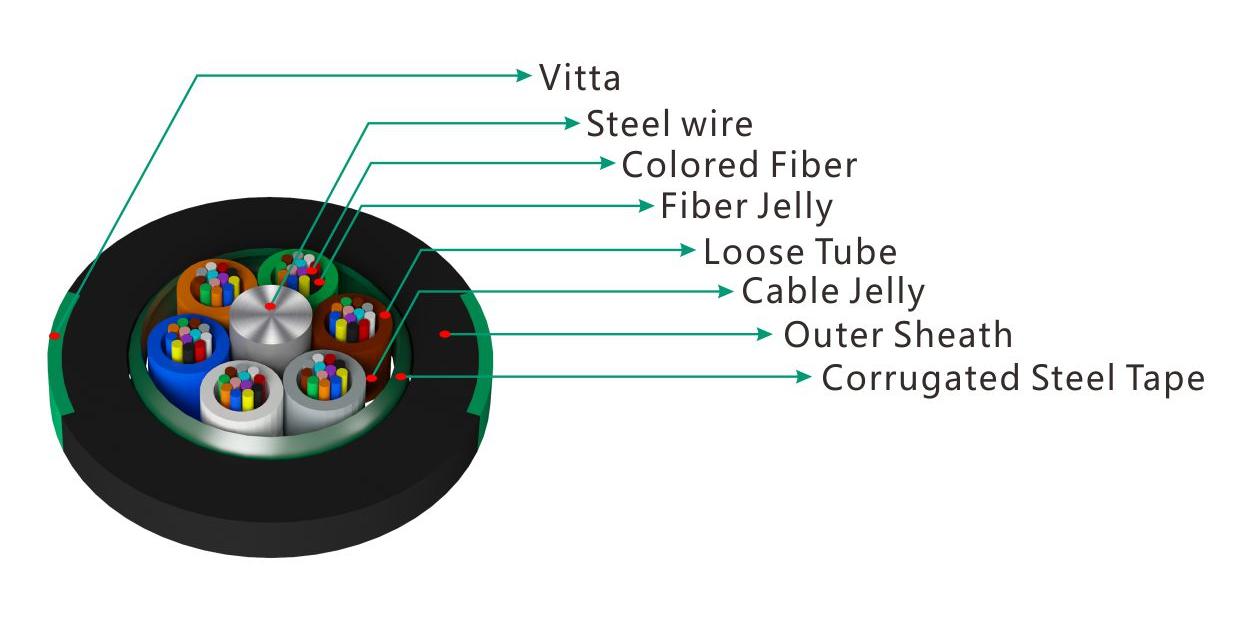

In the GYTS cable,fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath. Suitable for duct and direct buried application.

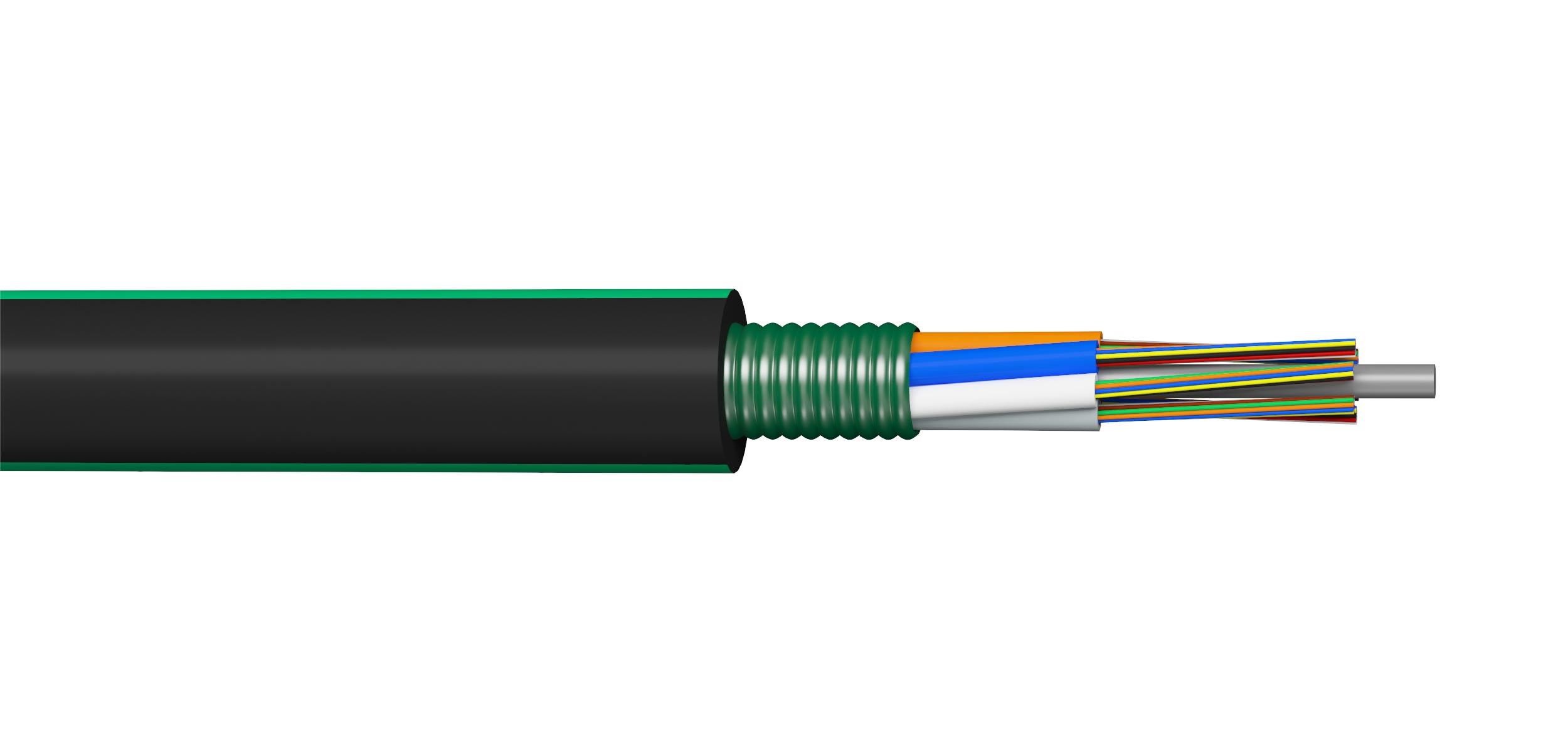

Product Show➜
Product Features➜
· Excellent mechanical properties and temperature characteristics;
· The loose tube material itself has good hydrolysis resistance and high strength;
· The tube is filled with a special oil paste, which provides critical protection for the optical fibre;
· Specially designed tight cable construction prevents retraction of the casing;
· Good water resistance with water blocking materials;
· PE jacket with high resistance to UV radiation;
· Metal strength member provides excellent strain performance;
· Corrugated steel tape armored providing property crush resistance
Product Standard➜
Comply with standard YD/T 90 and IEC 60794-1.
Optical Characteristics ➜
Fiber Type | Attenuation （+20℃） | Bandwidth | Numerical Aperture | Zero Dispersion wavelength (nm) | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
50/125µm | ≤3.0dB/km | ≤1.0dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Structure Parameter ➜
Product Model | Fiber Count | Cable out diameter | Cable Weight （kg/km） | Tensile Strength Long/Short Term | Crush Resistance Long/Short Term ( N/100m) | Bending Radius Static/Dynamic ( mm) |
GYTS | 1~30 | 9.0 | 89 | 600/1500 | 300/1000 | 10D/20D |
GYTS | 31~60 | 9.0 | 98 | |||
GYTS | 61~72 | 10.0 | 117 | |||
GYTS | 73~96 | 11.0 | 126 | |||
GYTS | 97~120 | 12.0 | 159 | |||
GYTS | 121~144 | 13.5 | 201 | |||
GYTS | 146~216 | 13.5 | 202 |
Environment Performance ➜
Transportation temperature | －20℃～＋70℃ |
Storage temperature | －20℃～＋70℃ |
Delivery length➜
Recommended length: 2000m; other lengths can be provided as customer request.
Packing Introduction➜
The fiber optic cables exported by OFC are packed with wood imported from Canada, which are fumigated for 24 hours at high temperature to effectively prevent the damage of diseases, pests, viruses and other ecological damage to the destination countries. OFC packages are fully meet customs requirements of the United States, Canada, European Union, Japan and Australia, and the official fumigation certificate shall be issued with the goods.
