Unitube Non-metallic optical cable
Unitube Non-metallic optical cable
Product Description➜

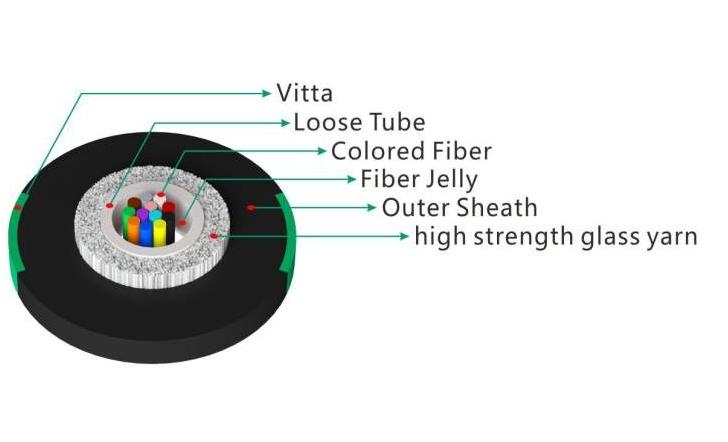

The indoor and outdoor Non-armored anti-rodent fiber optic cable is designed with one high modulus loose tube which is filled with water-resistant compound for 2-12 fibers. Twisted with high strength glass yarn , and extruded into a black or colored HDPE sheath to form the cable. High strength glass yarn as strength member provides additional mechanical protection and anti-rodent protection.

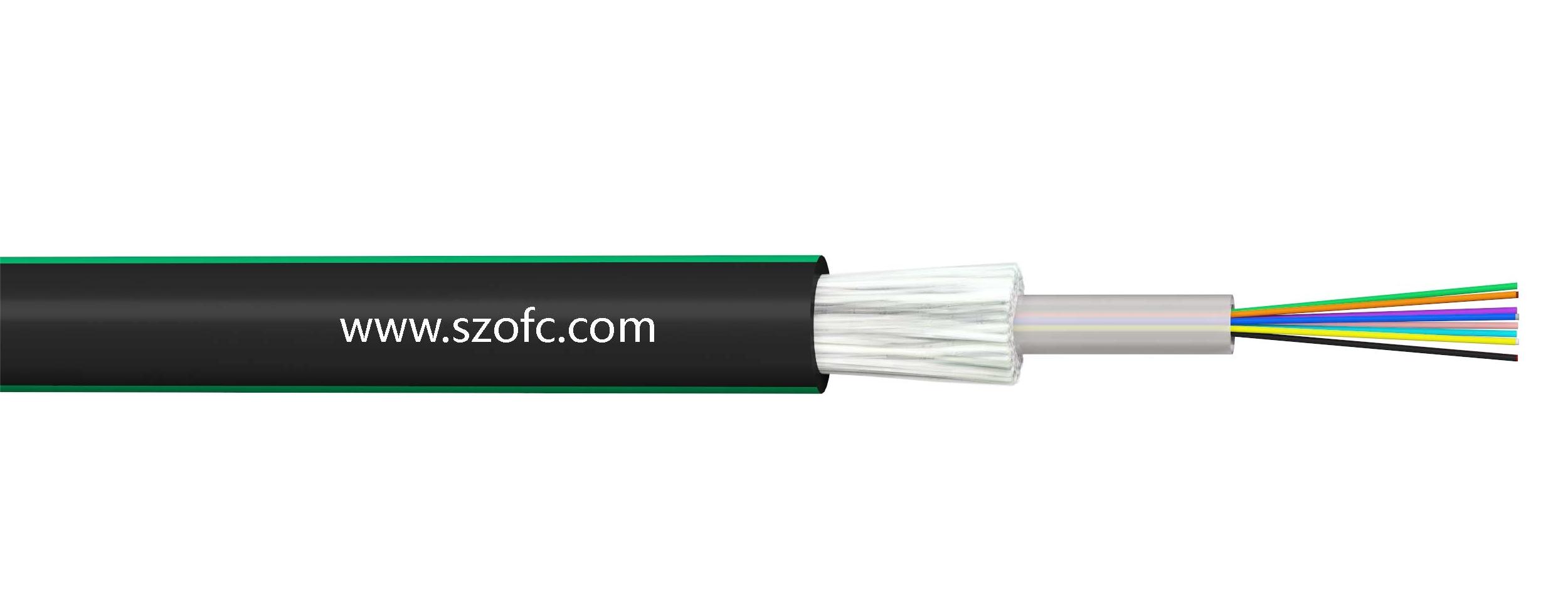

Product Show➜
Product Features➜
· Non-metallic structure design
· Uni-tube gel filled construction for fiber projection；
· Excellent tensile strength；
· Good flexibility；
· Anti-rodent.
Product Standard➜
Comply with standard YDT 769-2010.
Optical Characteristics ➜
Fiber Type | Attenuation（+20℃） | Bandwidth | Numerical Aperture | Zero Dispersion wavelength | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.657 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Structure Parameter ➜
Product Model
| Fiber Count | Cable Diameter | Cable Weight （kg/km） | Tensile Strength Long/Short Term | Crush Resistance Long/Short Term ( N/100m) | Bending Radius Static/Dynamic ( mm) |
GYFXY | 2-6 | 3.3 | 9.5 | 20/60 | 100/500 | 10D/20D |
GYFXY | 2-6 | 3.8 | 12 | 60/150 | 100/500 | 10D/20D |
GYFXY | 2-6 | 4.2 | 14 | 60/150 | 100/500 | 10D/20D |
GYFXY | 2-6 | 4.5 | 16 | 100/300 | 100/500 | 10D/20D |
GYFXY | 2-12 | 6.0 | 27 | 200/500 | 100/500 | 10D/20D |
GYFXY | 2-12 | 7.0 | 39 | 300/800 | 100/500 | 10D/20D |
Environment Performance ➜
Transportation temperature | －40℃～＋70℃ |
Storage temperature | －40℃～＋70℃ |
Delivery length ➜
Recommended length: 2000m; other lengths can be provided as customer request.
Packing Introduction➜
The fiber optic cables exported by OFC are packed with wood imported from Canada, which are fumigated for 24 hours at high temperature to effectively prevent the damage of diseases, pests, viruses and other ecological damage to the destination countries. OFC packages are fully meet customs requirements of the United States, Canada, European Union, Japan and Australia, and the official fumigation certificate shall be issued with the goods.
