Indoor Multi-core Micro Fiber Optic Cable - GJFV(H) (≤24F)
Product Description➜

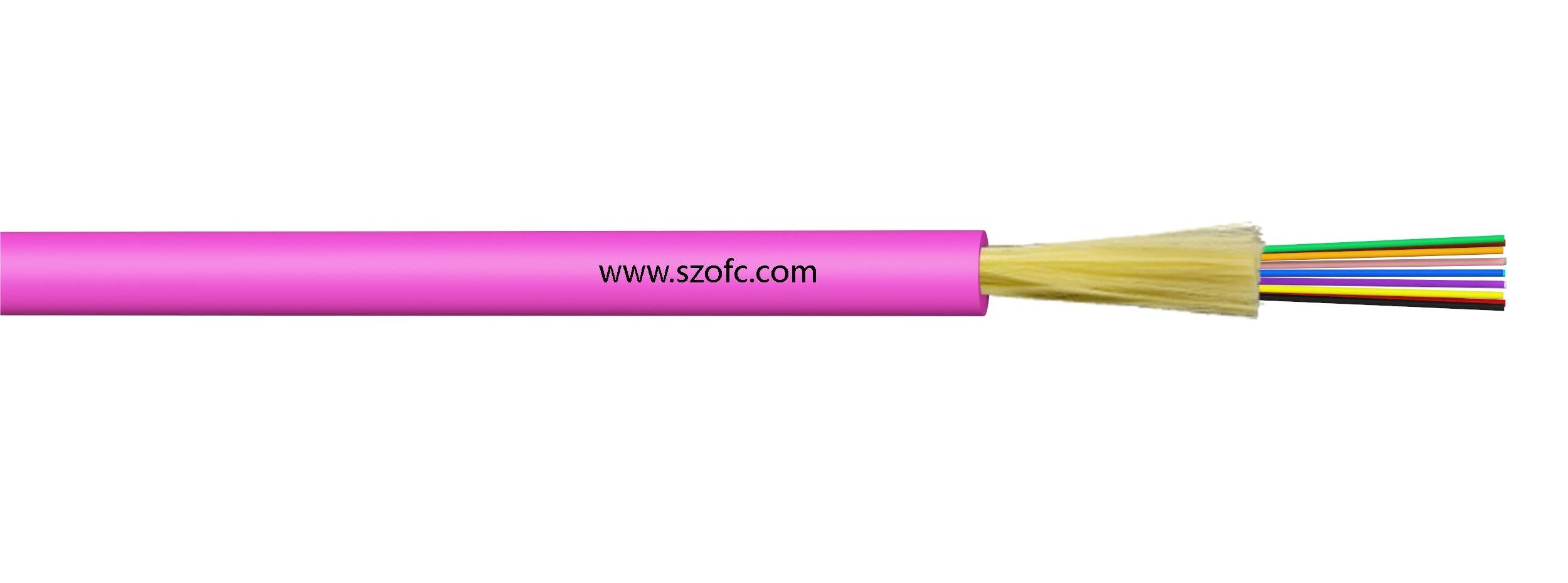

Indoor mini beam optical cable uses several coloured fibers as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH (Low smoke, halogen free, flame retardant) and TPU, are available on request.
Product Show➜
Product Features ➜
· Using coloured fibers, with compact structure, high fiber density, soft, flexible and easy to bend.
· High tensile strength due to aramid yarn strength member
· Weather resistant, waterproof, UV resistant, flame retardant and environmentally friendly outer sheath material.
Product Application➜
· MPO/MTP connectors for pigtails or optical patch cords.
· Interconnection of instruments, communication equipment, optical connection of highly dense indoor communication rooms.
· Indoor cabling.
Product Standard ➜
· Complies with YD/T 1258.4、ICEA-596、GR-409、IEC 60794-2-20/21 specification.
· PVC products are certified by UL OFNR and OFNP.
· LSZH products are available in different materials to meet IEC60332-1 or IEC60332-3C and the EU CPR flame retardant series.
Optical Characteristics ➜
Fiber type | Attenuation（dB/km） | Attenuation（dB/km） | OFL BW MHZ.km | Min EMB MHZ.km | 10Gb Ethernet Link Length | Min. Bending Radius mm |
1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | |
G.657A1 | 0.36/0.22 | / | / | / | / | 10 |
G.657A2 | 0.36/0.22 | / | / | / | / | 7.5 |
62.5/125 | / | 3.0/1.0 | ≥200/500 | / | / | 30 |
50/125 | / | 3.0/1.0 | ≥500/500 | / | / | 30 |
OM3 | / | 3.0/1.0 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | / | 3.0/1.0 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Structure Parameter➜
Optical cable model | Cable diameter | Reference weight（Kg/Km） | Tension Long/short term （N） | Crush resistance Long/short term (N/100mm) | Bending radius Static/dynamic（mm） | |
PVC | LSZH | |||||
GJFV（H）-12 | 3.0±0.2 | 6.8 | 7.6 | 30/100 | 100/500 | 20D/10D |
GJFV（H）-24 | 3.6±0.2 | 9.2 | 10.2 | 50/150 | 100/500 | 20D/10D |
Environment Performance ➜
Installation temperature | －5℃～＋50℃ |
Transportation/Storage temperature | －20℃～＋60℃ |
Delivery length ➜
Recommended length: 2000m; other lengths can be provided as customer request.

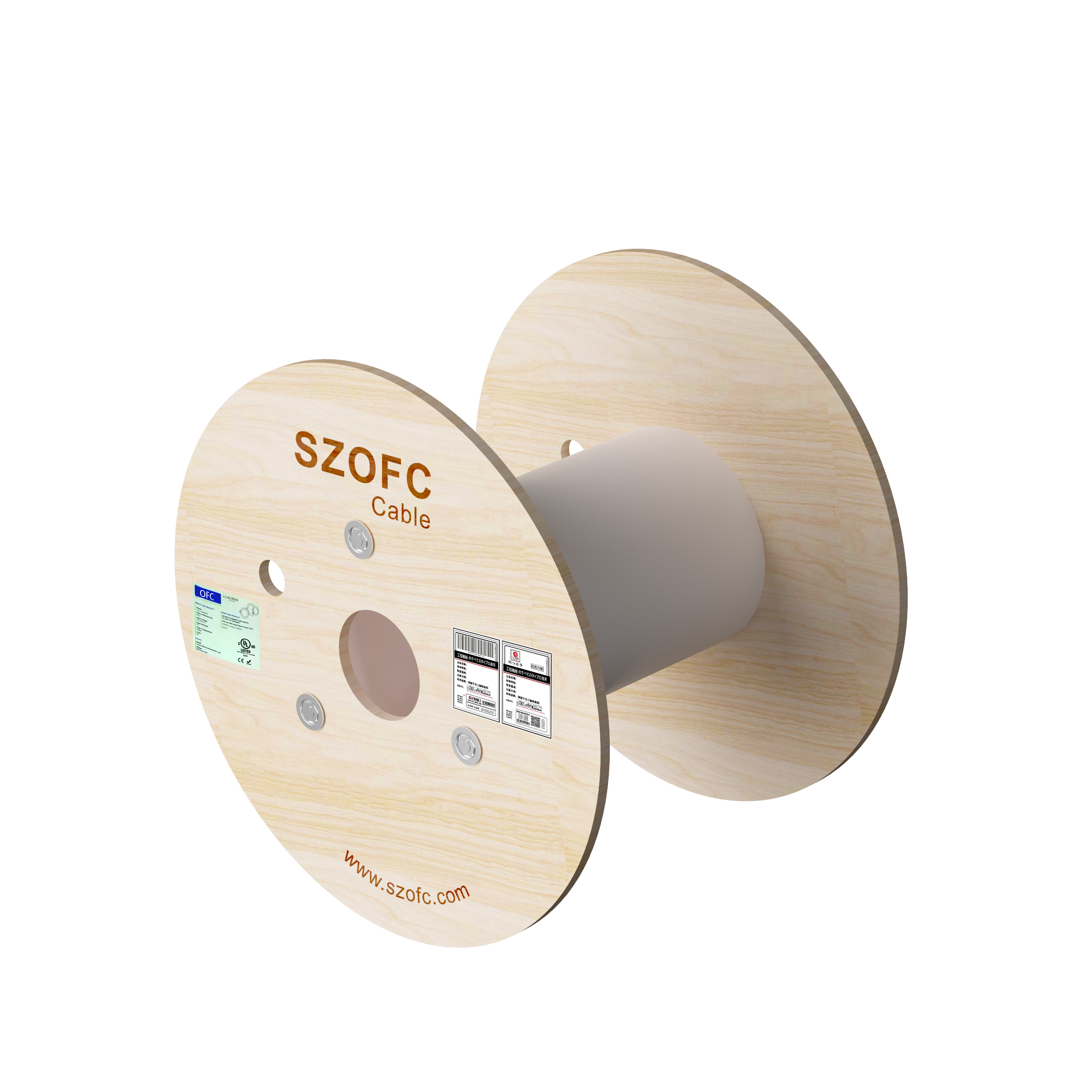

Packing Introduction➜
The fiber optic cables exported by OFC which packaging using high-temperature and high-pressure sterilized molded plywood. The plywood drum will not contain insects and insect eggs, which will not cause harm to the agricultural and forest resources of the destination countries. Therefore, when this kind of plywood drum is used as packing, the customs department does not require fumigation treatment.
