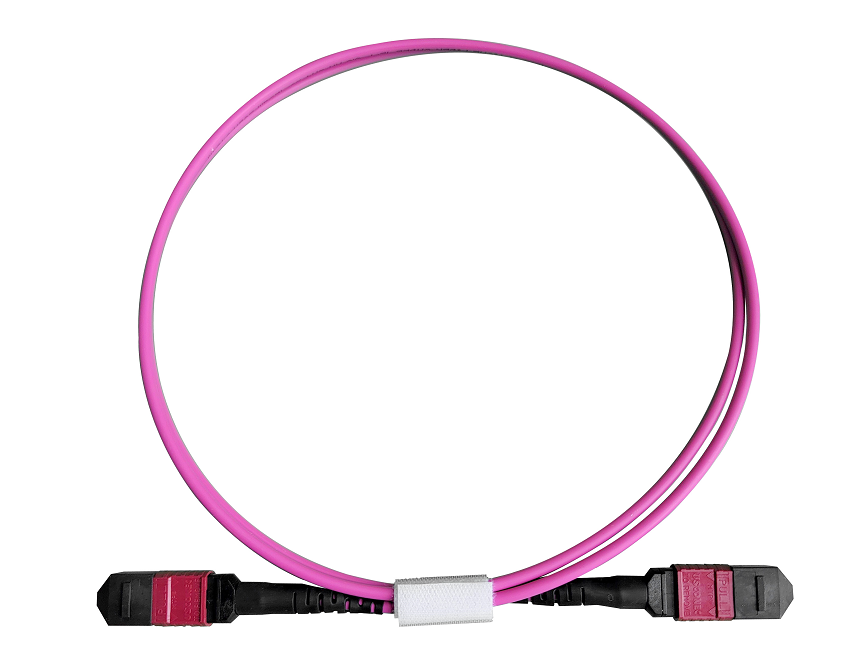

MTP/MPO TRUNK CABLE
Product Description➜
MTP®/MPO trunk cabling connects MTP®/MPO modules together as a permanent link. They facilitate rapid deployment of high-density backbone cabling in data centers and other high-density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug-and-play modules or MTP®/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP®/MPO panel with the plug-and-play module. They are used to interconnect module cassettes, panels or ruggedized MTP®/MPO fanouts, spanning MDA, HDA and EDA zones.
Show➜
Specifications➜
Construction | Description | |||||
Fiber Count | 4-384 Fibers | |||||
Fiber Mode | Single mode: OS2/G657 9/125um Multimode: OM3(50/125um); OM4(50/125um) | |||||
Fiber Brand | Corning SMF-28® Ultra optical fiber | |||||
Cable Jacket Ratings | Low Smoke Zero Halogen (LSZH) | |||||
Cable Jacket Color | OS2/G.657: Yellow | |||||
Polarity | Type A, Type B, Type C (TIA-568.3-D) | |||||
Connector Ferrule | 12F/16F/ 24F/32F/48F | |||||
Connector Ferrule Brand |
US Conec, HANKUSAN, Nissin | |||||
Connector Type | Male; Female | |||||
Connector Color | SM(APC) | SM(PC) | OM3 | OM4 | Or | |
Low loss | Yellow | Yellow | Aqua | Magenta | Customized | |
Standard | Green | Blue | Aqua | Magenta | ||
Connector Boot Color | Green/Black/Red/Gray or Customized | |||||
Pulling eye | Customized | |||||
Operating Temperature | -20°C to +70°C | |||||
Storage Temperature | -40°C to +85°C | |||||
Technical Specification➜
Optical Properties | Single mode | Multimode |
Insertion Loss (dB) | Low loss≤ 0.35 (Typical:≤ 0.25 ) | Low loss≤ 0.35 (Typical:≤ 0.2 ) |
Standard Loss≤0.75 (Typical:≤ 0.4 ) | Standard Loss≤ 0.6 (Typical:≤ 0.35 ) | |
Return Loss (dB) | PC≥50; APC≥60 | PC≥20; APC≥40 |
Durability | ≤0.2 dB typical change, 50 matings | |
Wavelength (nm) | Single mode: 1310/1550, Multimode: 850/1300 | |
Fiber Attenuation (dB/km) | Single mode: ≤0.35 at 1310nm, ≤0.2 at 1550nm | |
Transmission Distance | OM4: 150m at 40/100G, 550m at 10G | |
