FIBER PATCHCORD & PIGTAIL
Description➜
Fiber patch cord normally consists of optical fiber cable and connectors at both ends of the cable, the pigtail is connector assembled at one end,low mating insertion loss and negligible attenuation for access. besides conventional connectors like LC, LC uniboot, SC, MU, ST, FC, E2000, special and new like CS, SN connector patch cord is also mature.IEC, EIA/TIA compliant.

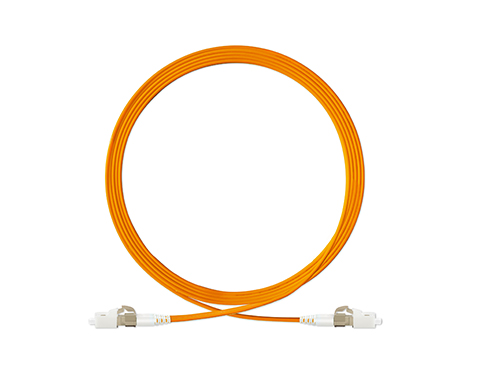

Product Show➜
Features of Fiber Patchcord & Pigtail➜
• Precision zirconia ferrules
• Standard or custom configurations
• Multimode and single-mode options
• Low-back reflection and insertion loss
Applications of Fiber Patchcord & Pigtail➜
• Data centers
• Ethernet applications
• FTTH applications
• Backbone, horizontal and riser applications
• Video, data and voice services
• Test equipment applications
Standard Compliance of Fiber Patchcord & Pigtail➜
• IEC 61754 series compliant
• Qualified to Telcordia GR-326-Core
• Reach, RoHS and SvHC compliant
Specification➜
Constructions | Descriptions |
Fiber Count | Simplex or Duplex |
Fiber Mode | Single mode: 9/125um, OS2/G657 Multimode: 50/125um, OM2, OM3, OM4 62.5/125um, OM1 |
Fiber Brand | Corning SMF-28® Ultra optical fiber, or ClearCurve bend insensitive optical fiber; Corning ClearCurve multimode optical fiber. |
Cable Dimension | 0.9mm, 2.0mm, 3.0mm or customized |
Cable Jacket Ratings | Low Smoke Zero Halogen (LSZH) Riser (OFNR) Plenum (OFNP) |
Cable Jacket Color | OS2/G657: Yellow OM1:Orange OM3: Aqua; OM4: Aqua / Magenta or Customized |
Connector Type | LC, MU, SC, FC, ST, MTRJ, SMA, or others required |
Physical Contact | APC, PC, UPC |
Connector Color | LC, SC: Green for APC, Blue for UPC, Grey for Multimode, Aqua for OM3, Aqua or Magenta for OM4, or Customized FC, ST, SMA: Metal MTRJ: Black |
Boot Color | White/Green/Black/Aqua/Magenta/Grey/ Customized |
Operating Temperature | -20 °C ~ +70 °C |
Storage Temperature | -40 °C ~ +85 °C |
Mechanical Data➜
Fiber Count | OD(mm) | Nominal | Max.Tension(N) | Max.Crushing Resistance(N/100mm) | ||
Weight (kg/km) | Short Term | Long Term | Short Term | Long Term | ||
Simplex 1.6 | 1.6±0.2 | 2.6 | 80 | 40 | 500 | 100 |
Simplex 2.0 | 1.9±0.2 | 4.5 | 100 | 60 | 500 | 100 |
Simplex 3.0 | 2.8±0.2 | 7.5 | 100 | 60 | 500 | 100 |
Duplex 1.6 | 3.4±0.2x1.6±0.2 | 5.3 | 80 | 40 | 500 | 100 |
Duplex 2.0 | 4.0±0.2 x1.9±0.2 | 8.7 | 200 | 100 | 500 | 100 |
Duplex 3.0 | 5.8±0.3 x2.8±0.3 | 14.8 | 200 | 100 | 500 | 100 |
