Indoor Armored Optical Fiber Cable
Product Description➜

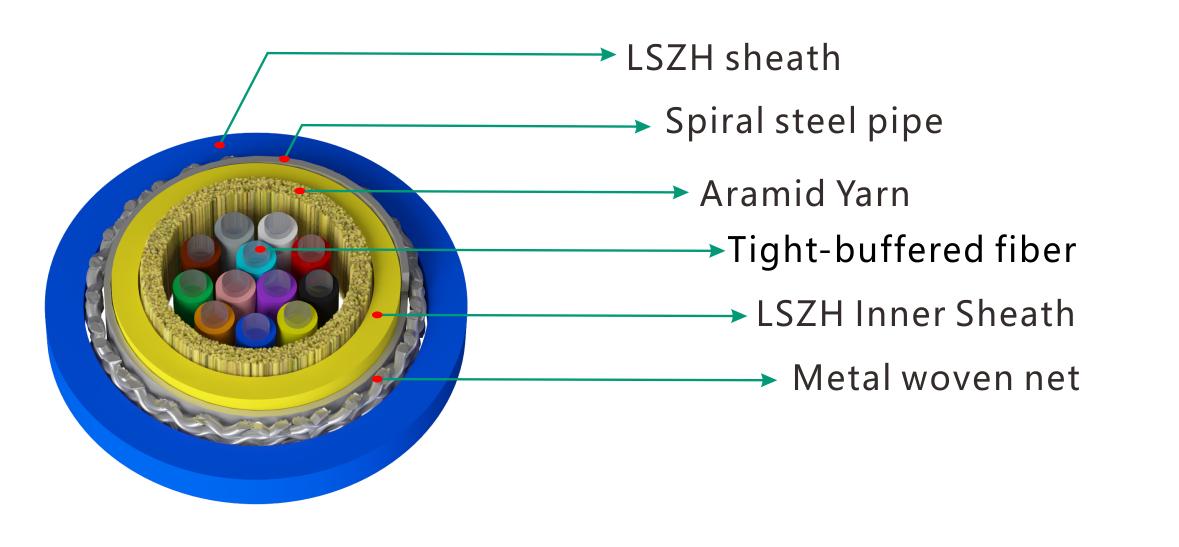

The structure of the cable is put ф900μm or ф600μm tight buffer fibers with aramid yarn,then covered with a layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally into fiber optic cable with PVC or LSZH sheath .

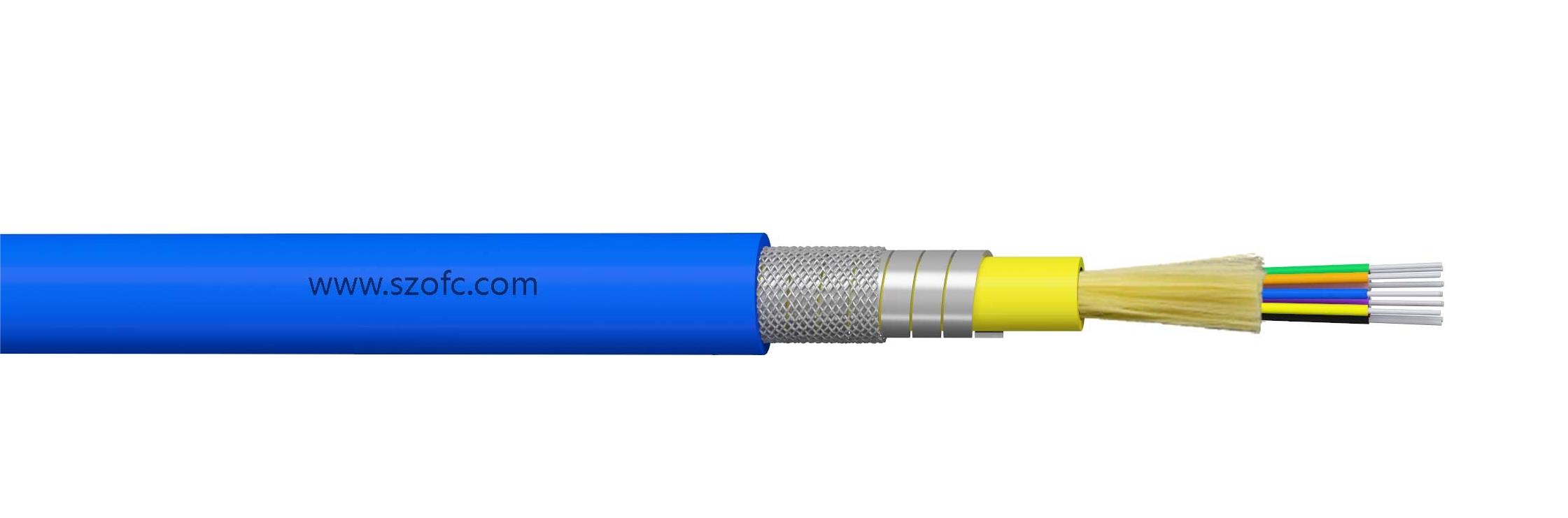

Product Show➜
Product Features➜
· Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
· High strength aramid yarn,high performance outer sheath
· Small radius, light weight,flexibility,and friendly installation.
· Good mechanical and environmental performance.
· Flame retardant outer sheath provide good safety.
Product Standards➜
·GJPFJKH(V) cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.
Optical Characteristics ➜
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth （ClassA） | @850 | ≥500MHZ·km | ≥500MHZ·km | ||
| @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Structure Parameter➜
|
|
|
|
|
|
|
mm |
GJPFJKH(V) | 2 | 0.6 | 5.0 | 42 | 300/750 | 200/1000 | 20D/10D |
GJPFJKH(V) | 4 | 0.6 | 6.0 | 65 | 300/750 | 200/1000 | 20D/10D |
GJPFJKH(V) | 6 | 0.6 | 6.0 | 66 | 300/750 | 200/1000 | 20D/10D |
GJPFJKH(V) | 8 | 0.6 | 6.0 | 68 | 300/750 | 200/1000 | 20D/10D |
GJPFJKH(V) | 12 | 0.6 | 6.0 | 70 | 300/750 | 200/1000 | 20D/10D |
Packing Introduction➜
The fiber optic cables exported by OFC which packaging using high-temperature and high-pressure sterilized molded plywood. The plywood drum will not contain insects and insect eggs, which will not cause harm to the agricultural and forest resources of the destination countries. Therefore, when this kind of plywood drum is used as packing, the customs department does not require fumigation treatment.
