FTTH Drop Cable with color stripe
FTTH Indoor and Outdoor Drop Cable with color stripe
Product Description➜

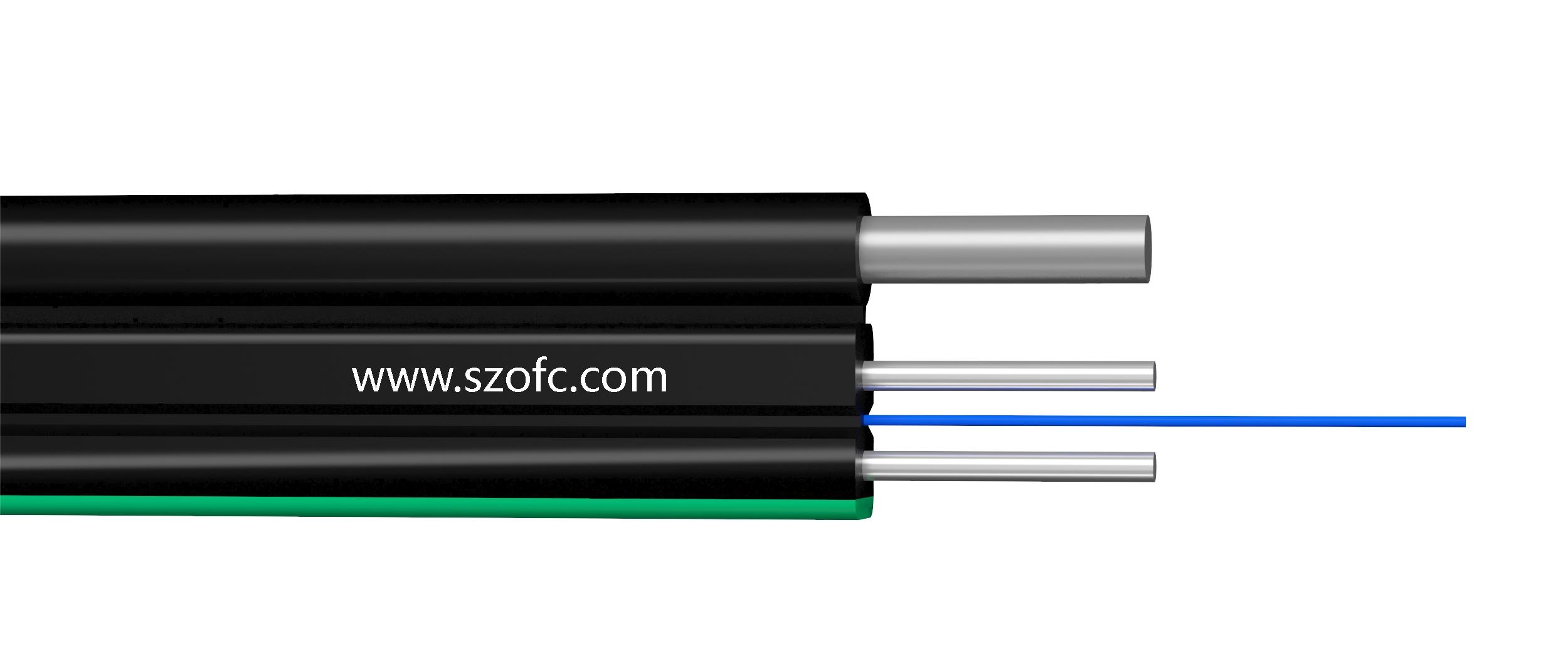

FTTH Aerial Fig8 Drop Cable GJYX(F)CH are used between buildings or inside houses. In the center of the cable is the optical fiber unit, with the two parallel non-metallic enhanced FRP/KFRP as the strength member, and surrounded with the LSZH jacket.
Product Show➜
Product Features➜
· Suitable for overhead laying at a certain distance
· Two parallel strength members have excellent crush and tensile resistance.;
· Small size, light weight, simple structure, easy to strip for its special groove design and no need any tool, easy to install;
· Low smoke, non-halogen flame retardant outer sheath material.
Product Standard➜
Comply with standard YDT 1997.1-2014, IEC-60332.
Optical Characteristics➜
Title | wave band | G.652 | G.657 | 50/125μm | 62.5/125μm |
(+20℃) | @850nm | - | - | ≤3.5dB/km | ≤3.5dB/km |
@1300nm | - | - | ≤1.5dB/km | ≤1.5dB/km | |
@1310nm | ≤0.34dB/km | ≤0.34dB/km | - | - | |
@1550nm | ≤0.22dB/km | ≤0.22dB/km | - | - | |
@850 | - | - | ≥500MHZ·km | ≥200MHZ·km | |
Brand width （Class A） | @1300 | - | - | ≥1000MHZ·km | ≥600MHZ·km |
- | - | - | 0.200±0.015NA | 0.275±0.015NA | |
- | ≤1260nm | ≤1260nm | - | - |
Structure Parameter ➜
Optical cable model
| Cable size
| Reference Weight (± 10%)
| Tension Long Term / Short Term N | Crush Resistance Long / short term N/100mm | Bending radius Static / dynamic mm |
GJYXFCH-1~2 core | 2.0*5.0 | 18.2 | 300/600 | 1000/2200 | 20/40 |
GJYXFCH-4-core | 2.0*5.0 | 18.3 | 300/600 | 1000/2200 | 20/40 |
GJYXFCH-6-core | 2.5*6.0 | 25.2 | 300/600 | 1000/2200 | 20/40 |
GJYXFCH-8-core | 2.5*6.0 | 25.2 | 300/600 | 1000/2200 | 20/40 |
GJYXFCH-12-core | 3.0*7.0 | 28.6 | 300/600 | 1000/2200 | 20/40 |
Note: The above is the typical value of household cable. The corresponding size can be set according to customer specific requirements and can be adjusted according to the actual situation | |||||
Environment Performance ➜
Transportation temperature | －40℃～＋70℃ |
Storage temperature | －40℃～＋70℃ |
Delivery length ➜
Recommended length: 2000m; other lengths can be provided as customer request.
Packing Introduction➜
The fiber optic cables exported by OFC which packaging using high-temperature and high-pressure sterilized molded plywood. The plywood drum will not contain insects and insect eggs, which will not cause harm to the agricultural and forest resources of the destination countries. Therefore, when this kind of plywood drum is used as packing, the customs department does not require fumigation treatment.
