Indoor Flat Ribbon Fiber Optic Cable
Indoor Flat Ribbon Fiber Optic Cable -GJDFBV(H)
Product Description➜

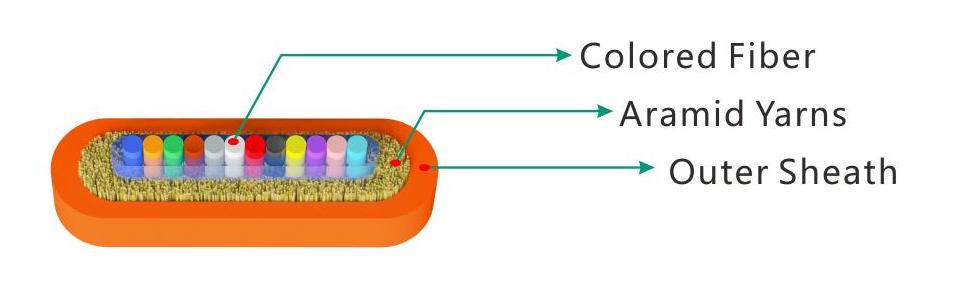

ndoor Flat Ribbon Fiber Optic Cable uses a fiber optic ribbon as the optical transmission medium and an outer layer of aramid as the force reinforcement unit, and then is completed with PVC or LSZH jacket.

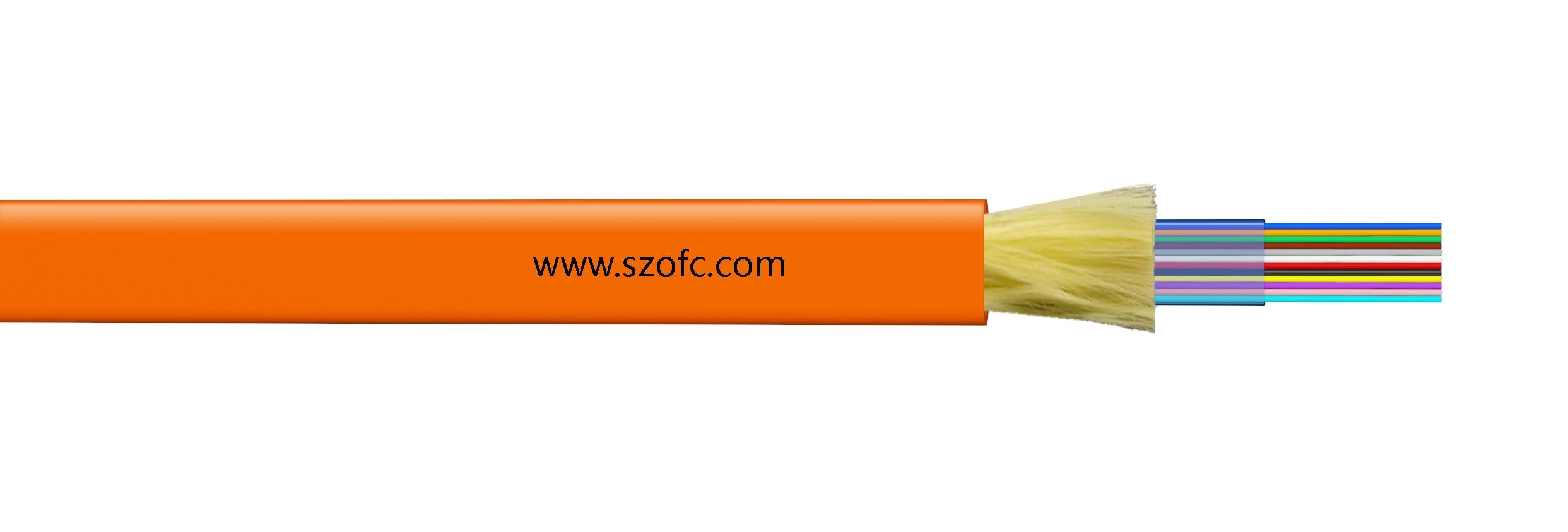

Product Show➜
Product Features➜
· Use coloured fiber tapes, small in size, high fibre density, soft, flexible and easy to bend.
· High strength aramid yarn strength member ensures tension-resistance.
· Weather resistant, waterproof, UV resistant, flame retardant and environmentally friendly outer jacket material.
Product Application➜
· Optical connections for optical equipment or optical instruments etc.
· Interconnection of instruments, communication equipment, optical connection of highly dense indoor communication rooms.
· Integrated cabling in indoor buildings, generally in a more relaxed environment of use and laying conditions.
Product Standard➜
· Complies with YD/T 1258.5、ICEA-596、GR-409、IEC 60794-2-30 specification.
· PVC products are certified by UL OFNR and OFNP.
· LSZH products are available in different materials to meet IEC60332-1 or IEC60332-3C and the EU CPR flame retardant series.
Optical Characteristics➜
Fiber type | Attenuation（dB/km） | Attenuation（dB/km） | OFL BW MHZ.km | Min EMB MHZ.km | 10Gb Ethernet Link Length | Min. Bending Radius mm |
1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | |
G.657A1 | 0.36/0.22 | / | / | / | / | 10 |
G.657A2 | 0.36/0.22 | / | / | / | / | 7.5 |
62.5/125 | / | 3.0/1.0 | ≥200/500 | / | / | 30 |
50/125 | / | 3.0/1.0 | ≥500/500 | / | / | 30 |
OM3 | / | 3.0/1.0 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | / | 3.0/1.0 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Structure Parameter ➜
Optical cable model | Cable diameter | Reference weight（Kg/Km） | Tension Long/short term （N） | Crush resistance | Bending radius | |
PVC | LSZH | |||||
GJDFBV(H)-4F | 2.5*3.5±0.3 | 7.9 | 8.7 | 300/100 | 1000/300 | 20H/10H |
GJDFBV(H)-6F | 2.5*4.0±0.3 | 8.6 | 9.9 | 300/100 | 1000/300 | 20H/10H |
GJDFBV(H)-8F | 2.5*4.5±0.3 | 9.3 | 10.8 | 300/100 | 1000/300 | 20H/10H |
GJDFBV(H)-12F | 2.5*5.0±0.3 | 10.2 | 11.9 | 300/100 | 1000/300 | 20H/10H |
Note: H refers to the thickness of the cable, the above values are typical and can be set according to customer requirements. | ||||||
Environment Performance ➜
Installation temperature | －5℃～＋50℃ |
Transportation/Storage temperature | －20℃～＋60℃ |
Delivery length➜
Recommended length: 2000m; other lengths can be provided as customer request

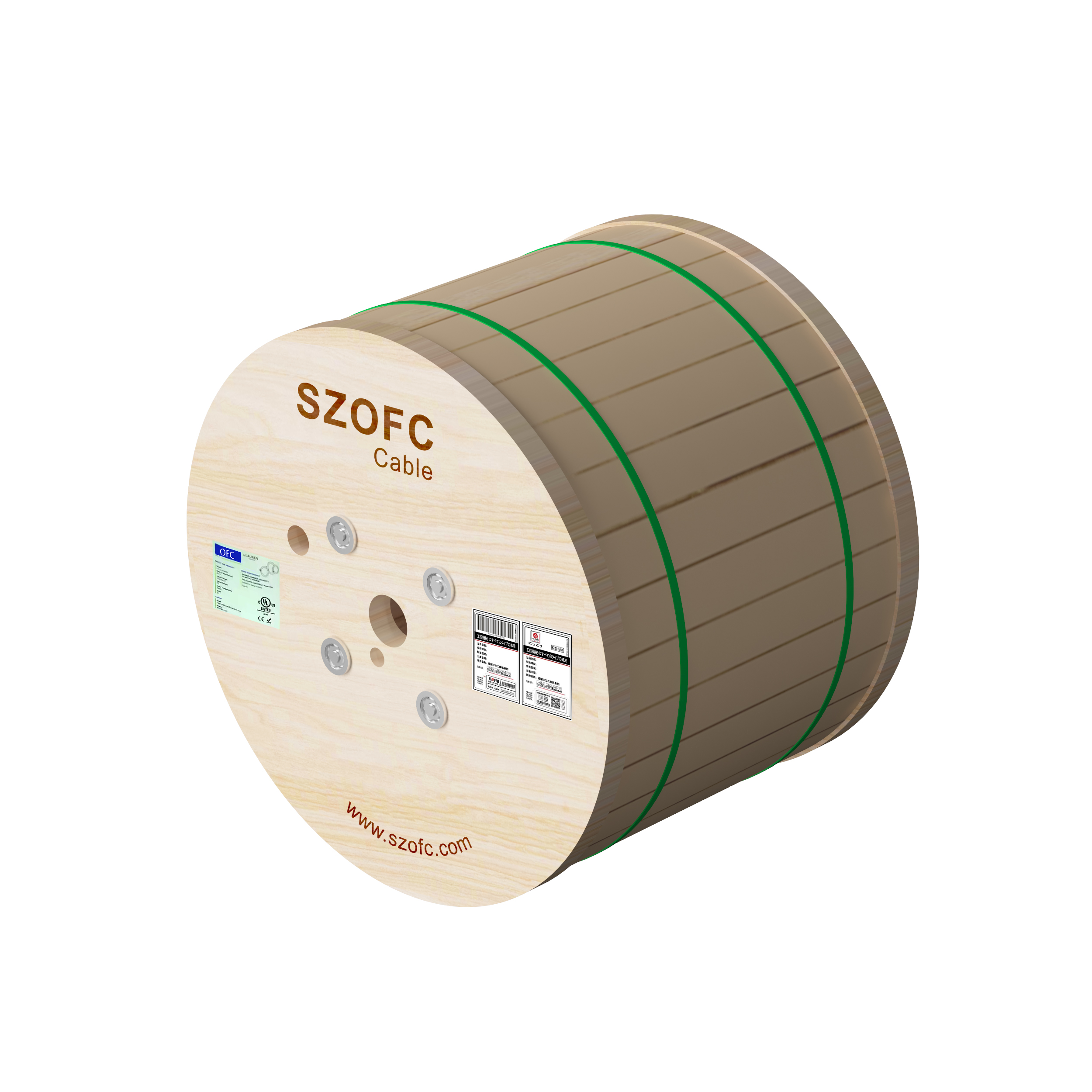

Packing Introduction➜
The fiber optic cables exported by OFC which packaging using high-temperature and high-pressure sterilized molded plywood. The plywood drum will not contain insects and insect eggs, which will not cause harm to the agricultural and forest resources of the destination countries. Therefore, when this kind of plywood drum is used as packing, the customs department does not require fumigation treatment.
